Ultra-thin, ceiling concealed FCU

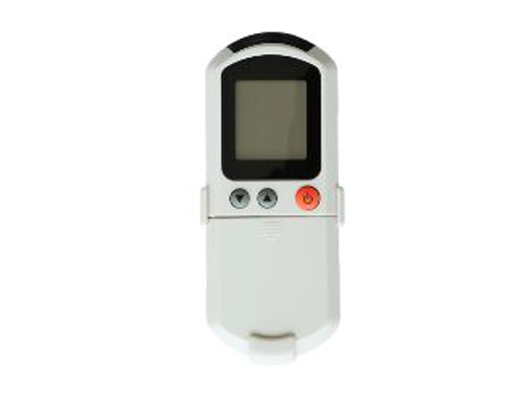

1. Wireless remote controller is standard;

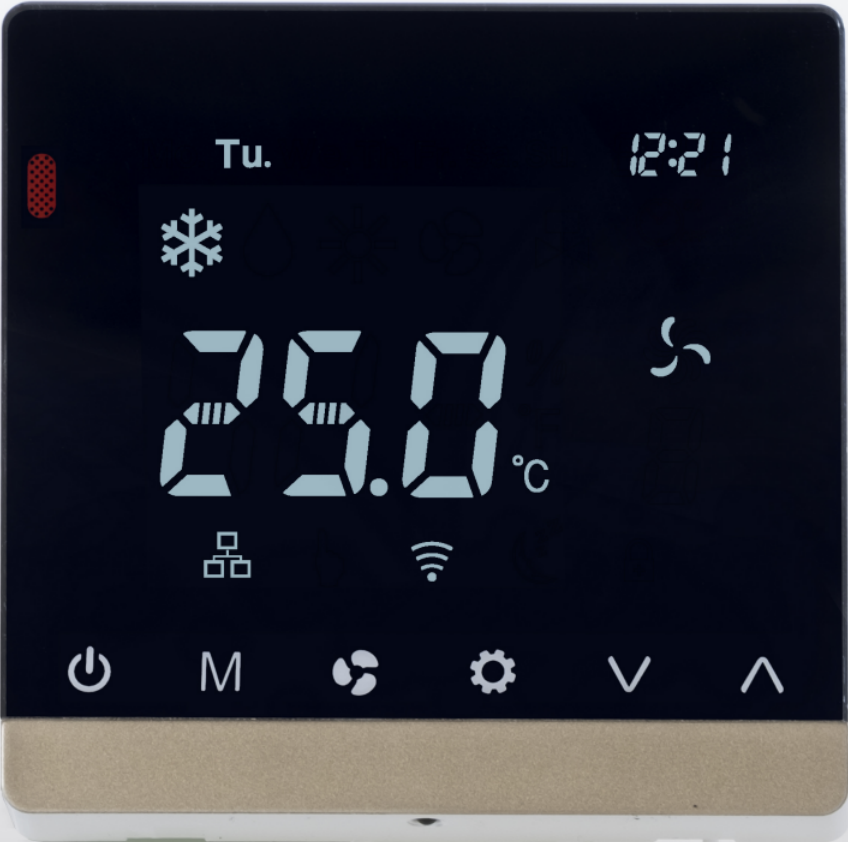

2. Wired wall controller is optional;
3. Auto reset, operation mode control; with room sensor & coil sensor;
4. daily timer or weekly timer
5.auto-diagnose, protections and error code disply; jumpers configurations on electronic board
6. RS485 ModBus, master-slave network control is Optional

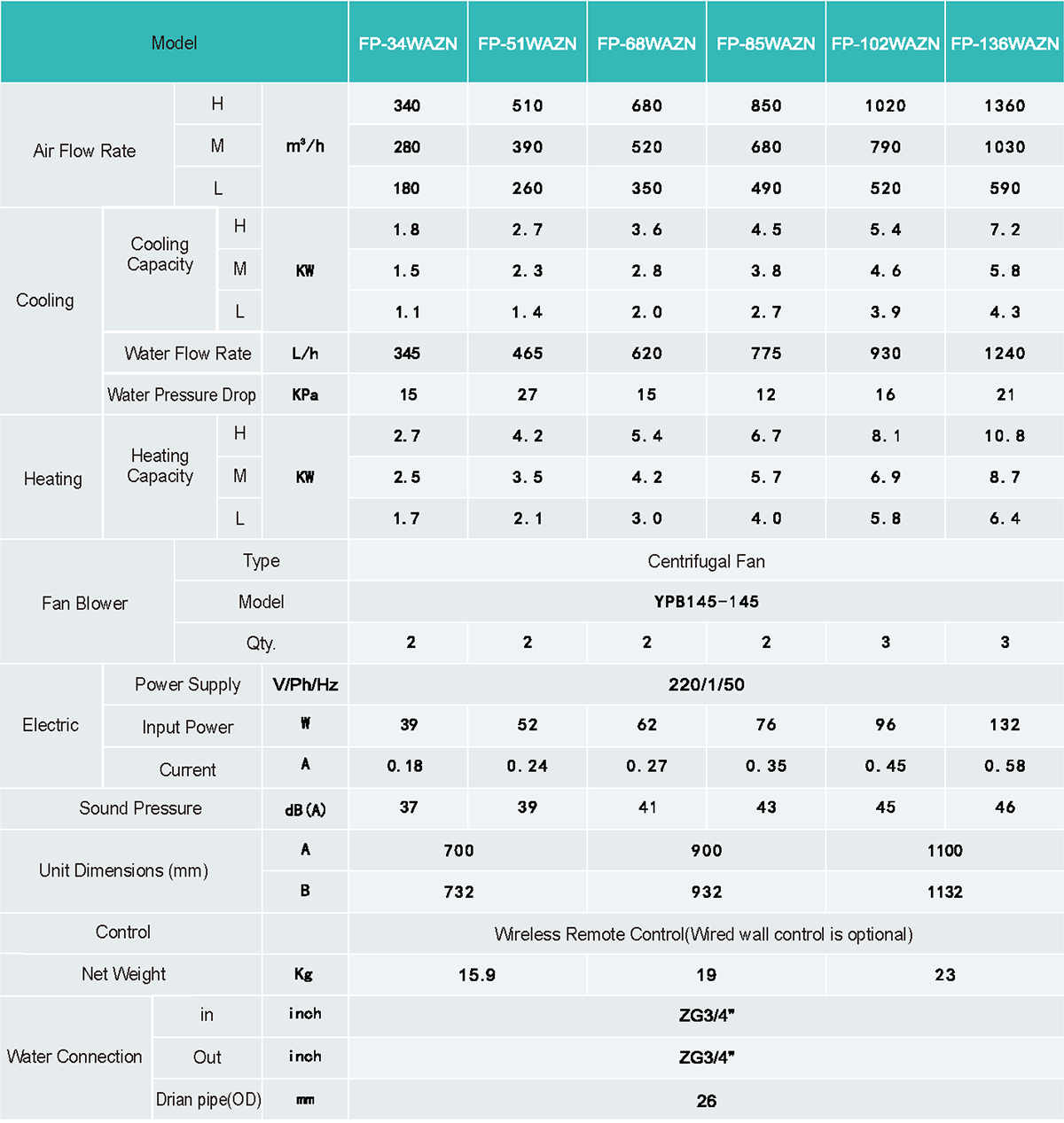

Advantagestechnical parameter

Ultra-thin, ceiling concealed type FCUs, suitable for hot/chilled water system


Centrifugal Fan
Well-known brand centrifugal fan with statically and dynamically balanced.

High Efficiency Coil
Coil are made of copper tubes and high exchange surface area aluminum blue fins.All coils are 100% tested against leaks by 16bar,1.6Mpa air pressure.

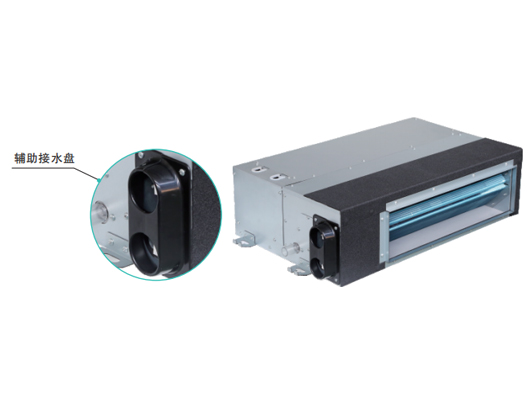

Drain Pan
Steel drain pan with powder coating for easy cleaning and corrosion resistance, anti-rust. The drain pan is insulated to prevent condensation water.


Drian pump
700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking.
